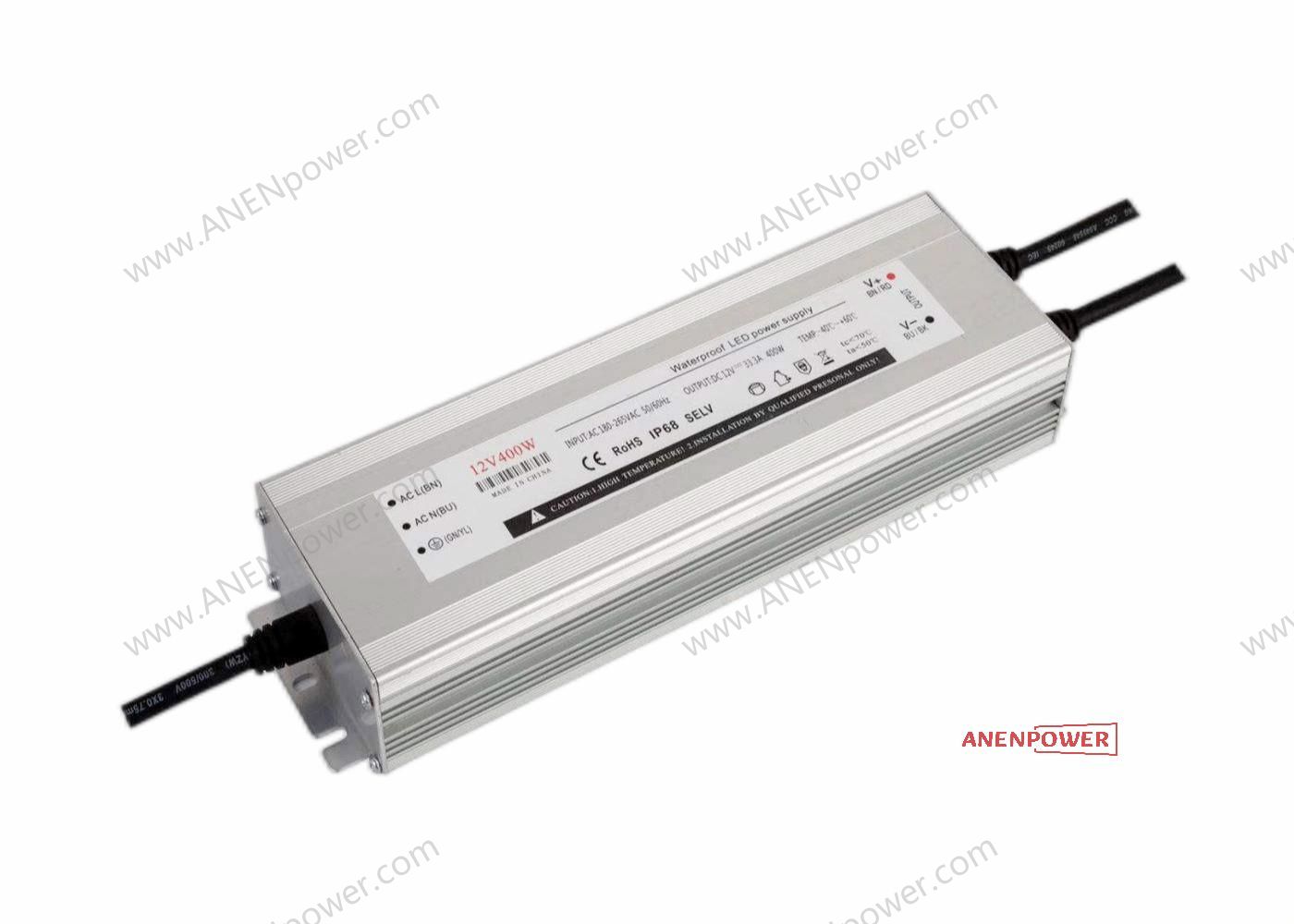

12V/24V/36V/48V Waterproof LED Power Supply - 400W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

Name: 12V24V36V48V Waterproof LED Power Supply 400W Output IP67 Rated Reliable Outdoor Lighting LED Driver
Brand: ANENpower
Price: 1 USD

Brand Name : ANENpower

Model Number : APL400W

Certification : GS CE ROSH CB UL cUL FCC KC PSE SAA UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Input : 100~277VAC, 50/60Hz

Output Power : 400W Max

Output Voltage : 12V or 24V or 36V or 48V

Safety Approvals : UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA

Standard : EN/IEC 61347, UL 1310

Applicants : LED Lighting Advertising, LED Display, LED Strips, etc.

Warranty : 3~5 Years

Waterproof Grade : IP67 / IP68

Contact Now

12V/24V/36V/48V Waterproof LED Power Supply - 400W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

The 400W Waterproof LED Power Supply delivers powerful and versatile performance with selectable output options of 12V, 24V, 36V, and 48V, catering to a wide range of LED applications. From outdoor lighting installations to signage and architectural projects, this power supply ensures consistent, high-efficiency operation to meet your needs.

Engineered for outdoor durability, its IP67-rated enclosure provides excellent protection against water, dust, and extreme temperatures, ensuring reliable performance in harsh environments. Built with robust materials, this power supply is designed to withstand the demands of long-term outdoor use while maintaining optimal efficiency.

Whether for residential or commercial lighting projects, this LED driver offers a reliable and high-performance solution. With its combination of flexibility, durability, and robust 400W output, it is the perfect choice for professionals looking to power their outdoor lighting systems with confidence.

MODEL DETAIL SPEC.		APL400W-12033333	APL400W-24016666	APL400W-36011111	APL400W-48083333
INPUT	Input Voltage:	100-240VAC/200-240VAC
	Input Frequency:	50/60Hz
	Inrush Current:	65A/230VAC at full load
	AC Current:	2.27A/115VAC 1.14A/230VAC
	Leakage Current:	＜0.25mA/240VAC
	Efficiency:	88%
OUTPUT	DC Voltage:	12V	24V	36V	48V
	Rated Current:	33.33A	16.66A	11.11A	8.33A
	Rated Power:	400W
	Voltage Tolerance:	±5.0%
	Ripple and Noise:	120mVp-p	240mVp-p	360mVp-p	480mVp-p
	Line Regulation:	±3%
	Load Regulation:	±5%
	Setup, Rise, Hold Up time:	1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL	Operating Temperature:	-20 ~ +50 (Refer to "Derating Curve")
	Storage Temp:	-40℃ ~ 85℃
	Storage Humidity:	20 ~ 95% RH
	Working Humidity:	20 ~ 95% RH non-condensing
PROTECTION	Over Load:	Above 105%-130% rated output power
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage:	12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V 36V:41.4 ~ 48.6V 48V:55.2~64.8V
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temperature:	Shut down o/p voltage, re-power on to recover
SAFETY & EMC	Safety Regulations:	EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
	Withstand Voltage:	I/P-O/P:3.75KVAC
	Harmonic	EN61000-3-2 Class C EN61000-3-3
	EMI:	Compliance to EN55015
	EMS:	compliance to 61547:2009
OTHER	MTBF:	200,000 Hours Minimum at Full Load at 25℃ Ambient
	Size:	23012758mm
	Weight:	3200g / pcs
	Packaging:	5PCS/CTN
